Security

This section covers security-related details of SDL.

Ingress Networking & Authentication

SDL exposes port 443 for the majority of network traffic, with the exception being Postgres, which listens on port 5432. All inbound network traffic is handled by the NGINX Ingress kubernetes proxy.

SDL Data Access Traffic:

  • HTTPS/443

    • API traffic is forwarded by NGINX Ingress to the SDL internal API Gateway, where the request is authenticated first against the internal Keycloak before being forwarded on to its destination service.

      • All internal REST communications uses Bearer tokens service-to-service.

      • Basic username/password credentials are automatically converted to Bearer tokens at the API Gateway.

    • Static resource requests, like those for loading web clients for various tools in SDL, are routed by NGINX Ingress directly to the target service.

  • Trino JDBC/ODBC clients use TCP/443 under the hood, and are routed from NGINX Ingress directly to Trino. Trino traffic is secured by Keycloak issued tokens.

  • Kafka uses a custom binary TCP based protocol, and is routed by NGINX Ingress directly to Kafka. Kafka traffic is secured by SASL/OAUTHBEARER, which is SASL protocol with Keycloak issued tokens.

  • s3 traffic also uses HTTPS/443 under the hood, and are routed from NGINX Ingress directly to MinIO. SDL MinIO supports Keycloak based authentication via MinIO’s Secure Token Service (STS), which authenticates users against their keycloak credentials, and issues temporary tokens similar to those used in OAUTH/OIDC flows.

  • Postgres clients use JDBC/5432, and that traffic is routed from NGINX Ingress directly to Postgres. Postgres uses internal Basic authentication. Keycloak authentication support via Postgres Pluggable Authentication Modules (PAM) is planned for a future PI.

TLS terminates at NGINX Ingress.

Ingress Overview

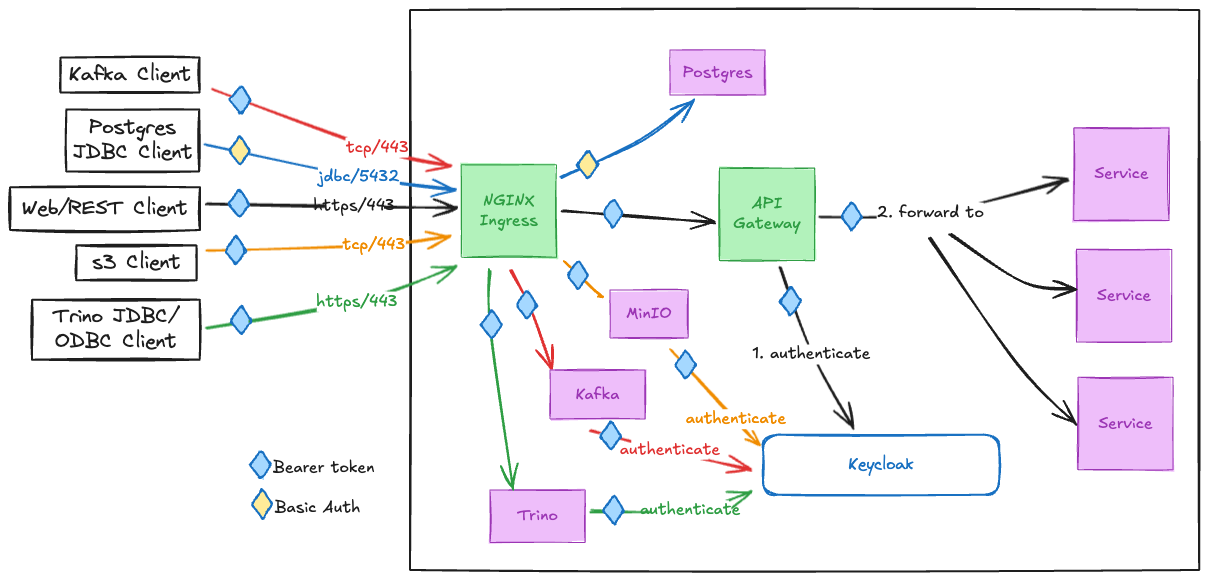

Figure 1. Ingress Overview

Ingress Routes

Protocol/Port Subdomain Path(s) Destination Service Authentication

https/443

/api/**

df-api-gateway / http/80

Bearer Token, Basic Auth

https/443

/auth/**

df-keycloak / http/8080

Bearer Token

https/443

/backend/**

df-backend / http/8180

Bearer Token

https/443

/, /api/auth, /api/frontend

df-frontend / http/3000

Bearer Token

tcp/443

kafka-bootstrap

df-kafka-external-bootstrap / tcp/9095

SASL/OAUTHBEARER

tcp/443

kafka-broker-0

df-kafka-external-0 / tcp/9095

SASL/OAUTHBEARER

tcp/443

kafka-broker-1

df-kafka-external-1 / tcp/9095

SASL/OAUTHBEARER

tcp/443

kafka-broker-2

df-kafka-external-2 / tcp/9095

SASL/OAUTHBEARER

https/443

s3

df-minio / http/9000

MinIO STS token

https/443

trino

df-raft-trino / http/8080

Bearer Token

jdbc/5432

postgres.dbaas

df-postgres-external / jdbc/5432

Basic Auth

https/443

grafana

grafana / http/3000

Bearer Token

https/443

hub

df-jupyterhub / http/80

Bearer Token

https/443

minio

df-minio-console / http/9001

MinIO STS Token

https/443

map

geoserver / http/80

Basic Auth

APIs

All the available APIs are listed on the main API landing page rooted at https://DF_HOST/api.

Endpoint Description

/api/id

General identification of a cluster.

/api/health

Get health status of a cluster.

/api/test

Test auth credentials and basic connectivity.

Platform Services

/api/proxy

Proxy to external services, with payload caching.

/api/v1/auth

Auth utilities (get a token, etc).

/api/v1/courier

Drop data into SDL.

/api/v1/kafka

Connect to Kafka.

/api/v1/s3

S3 object storage.

Data Services

/api/v2/catalog

Data catalog.

/api/v1/lakehouse

Data lake APIs.

Data Access Authorization

SDL primary data access authorization strategy is a hybrid of the 3 following techniques:

  1. Role Based Access Control (RBAC)

  2. Attribute Based Access Control (ABAC)

  3. Policy Based Access Control (PBAC)

Role Based Access Control (RBAC)

Role Based Access Control is a course-grained authorization strategy that relies on checking the requestors membership in specific roles/groups in order to grant access to resources.

SDL tends to use RBAC to authorize access to different datasets, or perform admin functions across various services. This authorization is performed at the service layer.

Attribute Based Access Control (ABAC)

Attribute Based Access Control is a fine-grained authorization strategy that is based on attributes of the user, resource, action, and environment. ABAC enforces policies dynamically by considering contextual data such as:

  • User attributes (e.g., role, department, clearance level).

  • Resource attributes (e.g., classification, owner, category).

  • Action attributes (e.g., read, write, delete).

  • Environmental attributes (e.g., time of access, location).

Policy Based Access Control (PBAC)

Policy Based Access Control is a fine-grained authorization strategy that uses a collections of predefined policies as rules-based decision making in order to grant access to resources.

Policies can be role-based (RBAC), attribute-based (ABAC), or other criteria.

SDL provides end (admin) user configurable authorization policies powered by Open Policy Agent (OPA), an Open Source, Rego based policy engine. This allows data access and authorization business rules to be implemented as configuration and easily modifiable due to evolving requirements, rather than hardcoded into custom applications.

SDL’s core implementation of classification, dissemination, and ACCM data access controls are implemented as OPA policies, based on the standardized Information Security Model (ISM) adopted across the program. This classification/dissemination control metadata structure is in every SDL data payload, or tagged to s3 objects.

Access control logic is split across multiple files by domain and function. Some files contain plumbing to connect to Keycloak to reference the user’s metadata, such as Roles, Groups, and Attributes.

OPA listens to REST calls on 8181, and serves the following types of requests:

  1. authorization checks

  2. policy management

  3. telemetry

None of the above functions are directly exposed outside of SDL.

OPA in SDL

The diagram below shows the connectivity of OPA to various major services in SDL. OPA references SDL Keycloak as needed to grab the roles, groups, and attributes of the user that OPA is performing an access decision on. The Keycloak attributes contain the user’s clearance, nationality, compartments and program reasons, etc.

SDL Keycloak in turn federates with the larger program Keycloak/Identity Provider (IDP) solution to get the federated users, attributes, and any program wide roles and groups.

Authorization Overview

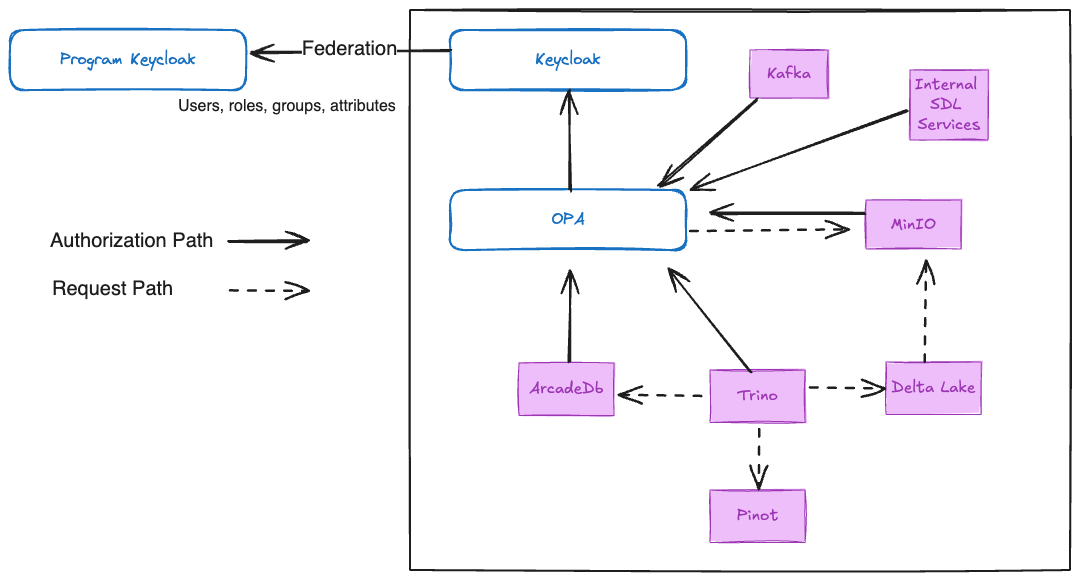

Figure 2. Authorization Overview

There are two patterns of OPA authorization in SDL:

Resource based authorization

Resource based authorization requests are when authorization checks to individual resources are made, one at a time, to OPA, and authorized if the requesting user has sufficient clearance and Need to Know (NTK) to the requested resource. These are used in the following ways:

  1. Kafka

    1. Classification/dissemination based authorization checks for kafka topics, leveraging the program ISM tags to filter available topics for a user..

  2. MinIO (s3)

    1. Classification/dissemination based authorization checks for each object in any requested bucket, leveraging the program ISM tags on the objects.

Predicate based authorization

Predicate based authorization requests are when the shape of a user’s data access is exported from OPA, and converted into query predicates. Those query predicates are transparently applied to the original user data request to limit the data returned or modified to just what they have access to.

This technique is extremely useful when data access controlling query surfaces over large datasets, where lazily checking permission to every single object would be prohibitively expensive. Each datastore or query surface that uses this technique will have applied the program adopted ISM data access controls to every data element in their system.

The following query surfaces/datastores use predicate based authorization:

  1. Delta Lake (via Trino)

  2. Pinot (via Trino)

  3. Trino
