SOF Data Model

The SOF Data Model (SDM) is the shared tactical entity model used by SDL to publish, stream, query, exchange, and reconstruct operational data across platform services. SDM gives tactical systems a compact common shape for data that appears in a common operational picture while still preserving source-specific payloads.

What is SDM?

SDM represents tactical data as entities. An entity can be a platform, unit, person, sensor, signal, event, route, area, control measure, or other map-drawable feature.

The common entity contract focuses on fields that are useful across many source systems:

Identity — stable entity IDs and external identifiers for correlation.
Type — broad operational domain, producer-specific kind, and source standard.
Location and motion — point position, uncertainty, orientation, velocity, speed, and acceleration.
Geometry — point, line, polygon, circle, ellipse, rectangle, radial arc, route, orbit, and corridor shapes.
Assessment — tactical affiliation and operating environment.
Security — default markings and optional field-level overrides.
Provenance — source attribution, update time, collection method, reliability, credibility, producer, and responsible actor.
Labels — small indexed key-value pairs for routing, filtering, and grouping.

Source-specific data lives in Entity.details or Entity.external_refs. Use typed fields when data is broadly useful to many consumers. Use details for producer-specific attributes, raw message fragments, or fields that should not become part of the shared contract yet.

Why SDM Matters

SDM reduces format coupling between tactical systems. Producers can map native formats into one shared entity contract, and consumers can build against that contract instead of every upstream message format.

This matters for SOF workflows because mission data often crosses source, network, enclave, and application boundaries. SDM provides:

Interoperability — tactical formats can meet at a common entity layer.
Streaming and replay — current state, live updates, and accepted history records share one model.
Operational filtering — services can query by entity ID, status, domain, kind, affiliation, environment, labels, provenance, or bounding box.
Extensibility — source-specific payloads remain available without expanding the top-level model for every feed.
Provenance-aware fusion — consumers can reason about where data came from, when the source updated it, how it was collected, and how credible it is.

Entity Model

The SDM protobuf package is raft.sdm.v1beta. The main files are:

File Purpose

File	Purpose
`entity.proto`	Defines `Entity`, identity, lifecycle status, entity type, details, external references, assessment, symbology, motion, and spatial location.
`shape.proto`	Defines position and map-drawable geometry types.
`security.proto`	Defines security markings and field-level security overrides.
`provenance.proto`	Defines source attribution, collection method, reliability, credibility, and responsible actors.
`query.proto`	Defines flat entity queries and richer boolean stream filters.
`entity_service.proto`	Defines public publish, search, get, stream, and history APIs.

entity.proto

Defines Entity, identity, lifecycle status, entity type, details, external references, assessment, symbology, motion, and spatial location.

shape.proto

Defines position and map-drawable geometry types.

security.proto

Defines security markings and field-level security overrides.

provenance.proto

Defines source attribution, collection method, reliability, credibility, and responsible actors.

query.proto

Defines flat entity queries and richer boolean stream filters.

entity_service.proto

Defines public publish, search, get, stream, and history APIs.

API Surface

The public SDM entity service is raft.sdm.v1beta.EntityService. It supports ConnectRPC and gRPC, with REST transcoding for unary methods in the OpenAPI spec.

API Purpose

API	Purpose
`PublishEntity`	Creates or updates one entity.
`PublishEntities`	Publishes a client stream of entity updates.
`SearchEntities`	Retrieves a paged snapshot of matching current entities.
`GetEntity`	Retrieves one current entity by ID.
`StreamEntities`	Streams initial and live entity lifecycle events using boolean stream filters.

PublishEntity

Creates or updates one entity.

PublishEntities

Publishes a client stream of entity updates.

SearchEntities

Retrieves a paged snapshot of matching current entities.

GetEntity

Retrieves one current entity by ID.

StreamEntities

Streams initial and live entity lifecycle events using boolean stream filters.

SDM Page

The SDL SDM page lets operators search live SDM entity records, inspect entity details, review entity history, and hand matching entities to Maps for geospatial visualization. Use it when you need to validate what SDM is receiving, narrow records to a specific entity, or inspect the latest operational state for an entity published by a pipeline or external producer.

Sign in to the SDL web UI.
Open SDM from the main navigation.
Use the Query panel to build a filter, then click Search.

The SDM page starts with no stream open. Search opens the SDM entity stream using the current filter. Clear resets the filter and closes the current search.

On wide screens, the query panel and entity records are shown side by side. On smaller screens, use the Query and Results tabs to move between filter editing and matching records.

Search Without Filters

Click Search with the default empty filter to open the stream without narrowing matches. This is useful for confirming that SDM is receiving entities and for sampling current operational traffic.

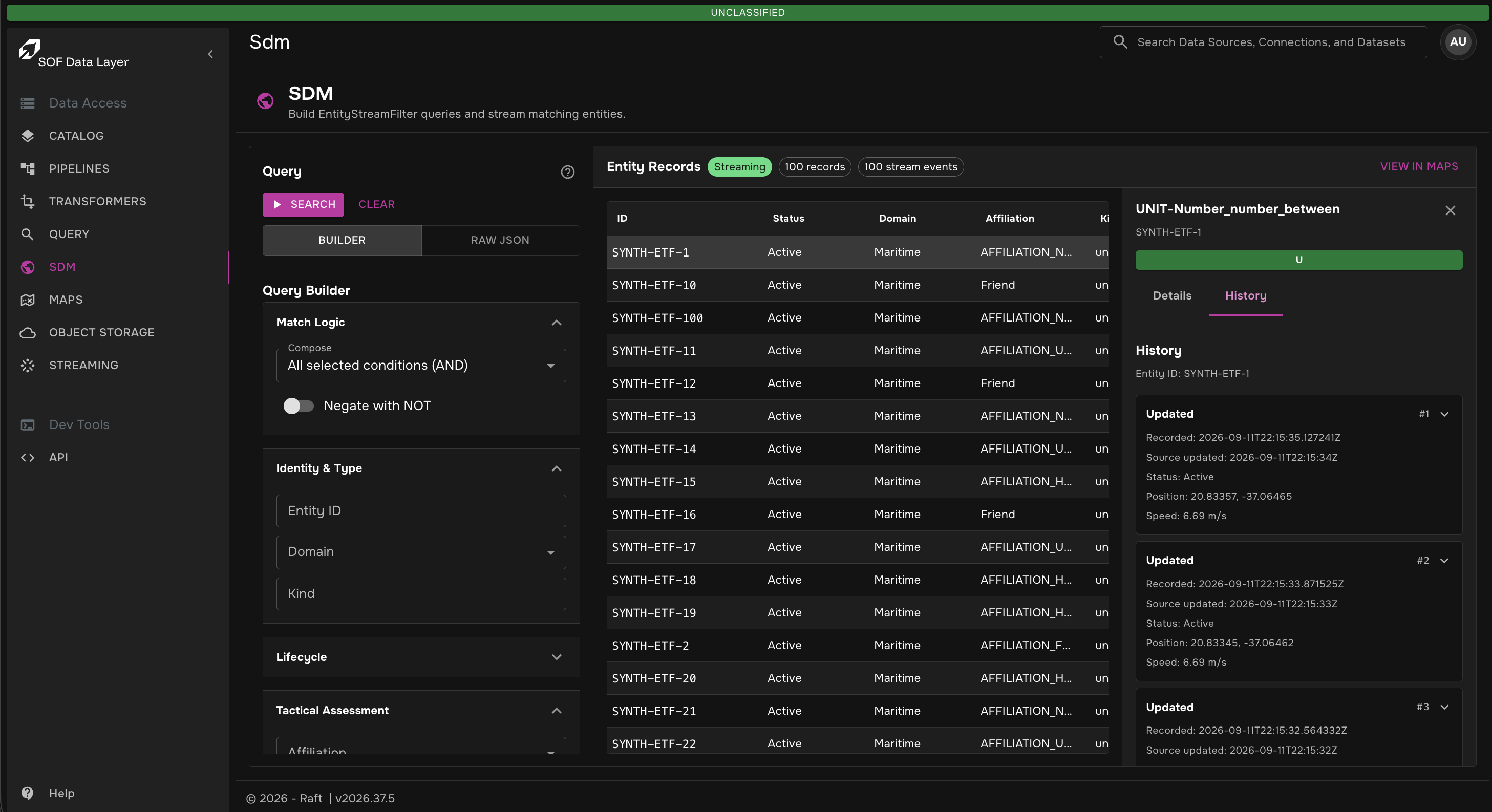

SDM page showing default search with no filters

After the stream opens, the Entity Records workspace shows:

Status — stream state for the current search.
Records — number of matching entity records currently held in the page.
Stream events — number of stream events received for the current search.
View in Maps — opens Maps with the current SDM filter when records are available.

The records table includes each entity’s ID, status, domain, affiliation, kind, latitude, longitude, and last updated time. Matching records appear as stream events arrive.

Filter with the Query Builder

Use Builder mode for guided filter construction. The query builder writes the SDM EntityStreamFilter JSON for you.

Builder sections include:

Match Logic — compose selected conditions with AND or OR, and optionally negate the filter with NOT.
Identity & Type — filter by entity ID, domain, or kind.
Lifecycle — filter by entity status.
Tactical Assessment — filter by affiliation or environment.
Location & Motion — filter by bounding box or minimum speed.
Source & Metadata — filter by source name or label key and value.
Details & Advanced — filter by field path, comparator, and field value.

To search for one entity:

Keep Builder selected.
Expand Identity & Type.
Enter the entity identifier in Entity ID.
Click Search.

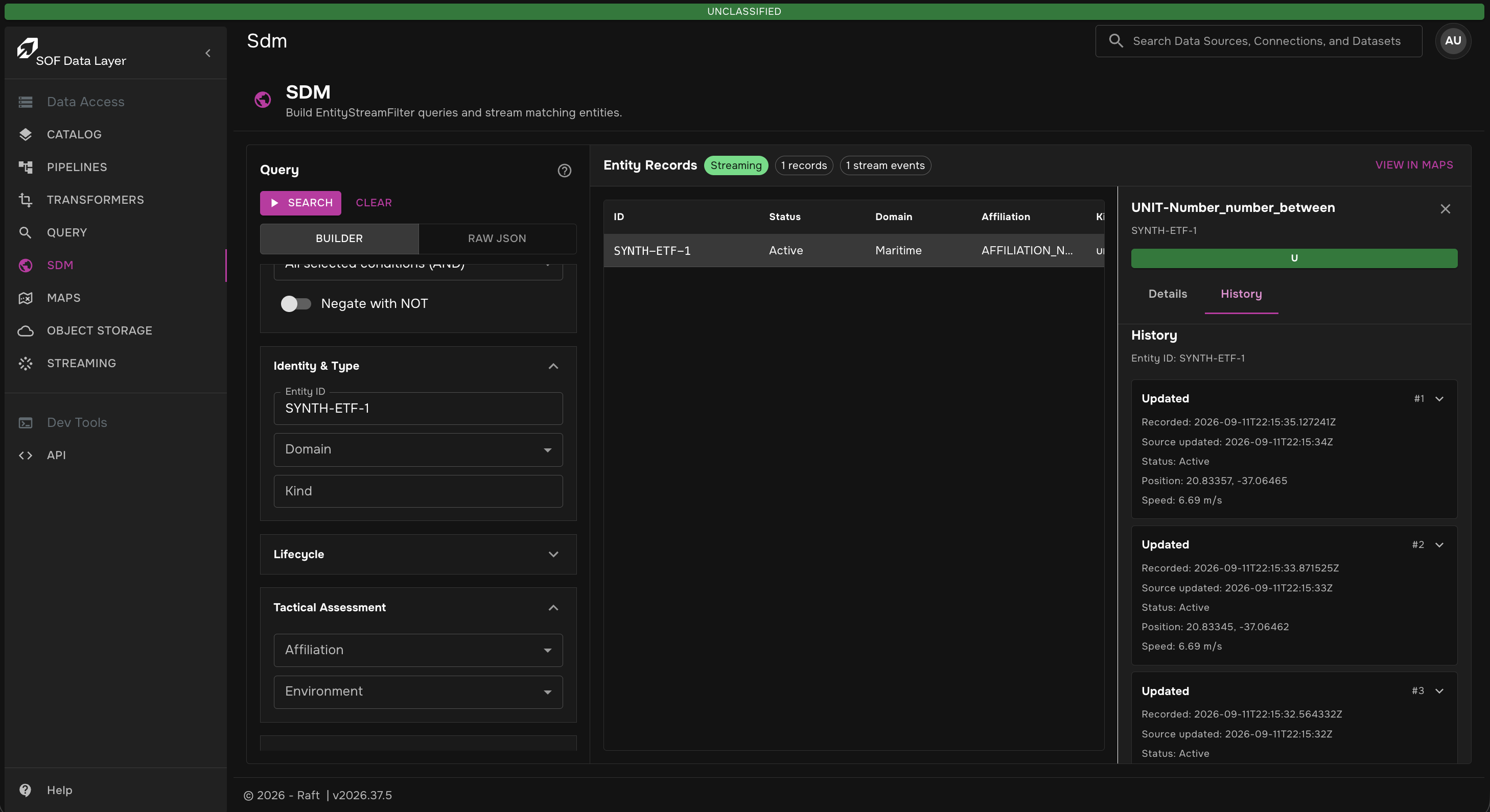

SDM page showing query builder filter on entity ID

When you change a filter after searching, the page keeps showing results from the last searched JSON until you click Update Search.

Edit Raw JSON

Use Raw JSON mode when you need to paste or edit a full EntityStreamFilter object directly. The page validates the JSON before allowing search.

Click the query help icon to open examples for:

an empty filter,
a single predicate statement,
AND statement groups,
OR statement groups,
NOT statements.

Use Raw JSON for filters that are easier to express as nested statements than through the builder controls.

Inspect Entity Details

Click an entity row to open the details rail. The details rail fetches the full entity by ID and shows the selected entity’s current SDM record.

Use the Details tab to inspect operational fields, source metadata, security markings, location, motion, and raw entity JSON. Use the History tab to load recent history records for the selected entity.

History requests load the newest records first. If more history is available, use the load-more action to continue paging through the entity timeline.

View Results in Maps

When a search returns records, click View in Maps to open Maps with the current SDM filter. Use this handoff when matching records need spatial context, clustering, AOI comparison, or overlay with GeoServer and TileService layers.

The Maps page uses the same SDM filter JSON, so the entities shown on the map correspond to the search you ran from the SDM page.

History APIs

SDM stores accepted entity changes as immutable history records. History records include the entity snapshot, lifecycle event type, server-recorded time, source update time, and a monotonic history_id.

API Purpose

API	Purpose
`ReplayEntityHistory`	Replays accepted history records in durable recorded order across an optional recorded-time range.
`GetEntityHistory`	Retrieves the recorded change log for one entity.
`GetEntityAtTime`	Retrieves one entity snapshot as it existed at or before a source timestamp.
`SearchEntitiesAtTime`	Searches reconstructed entity snapshots as they existed at or before a source timestamp.

ReplayEntityHistory

Replays accepted history records in durable recorded order across an optional recorded-time range.

GetEntityHistory

Retrieves the recorded change log for one entity.

GetEntityAtTime

Retrieves one entity snapshot as it existed at or before a source timestamp.

SearchEntitiesAtTime

Searches reconstructed entity snapshots as they existed at or before a source timestamp.

SDM keeps two time concepts:

recorded_at — server time when the node accepted and recorded the change. Used for audit order, replay, partitioning, and cursors.
source_updated_at — copied from entity.provenance.updated_at. Used for source-timeline reconstruction and at-time queries.

Deleted snapshots are excluded from at-time results by default unless the request explicitly includes deleted records.

Available Transformers

SDL provides built-in SDM-compatible transformations through the sdmproto format. These transformers let pipelines convert source formats into SDM, convert SDM into downstream tactical formats, or pass SDM protobuf messages through unchanged.

Direction Transformer Notes

Direction	Transformer	Notes
To SDM	`catapult` → `sdmproto`	Converts CATAPULT document JSON to SDM entities.
To SDM	`cotxml` → `sdmproto`	Converts Cursor-on-Target XML events to SDM entities.
To SDM	`cotproto` → `sdmproto`	Converts Cursor-on-Target protobuf events to SDM entities.
To SDM	`etfproto` → `sdmproto`	Converts Extended Track Format protobuf records to SDM entities.
To SDM	`geojson` → `sdmproto`	Converts GeoJSON features to SDM entities.
To SDM	`json` → `sdmproto`	Converts SDM Entity JSON to binary SDM protobuf.
To SDM	`klvjson` → `sdmproto`	Converts MISB/KLV JSON metadata to SDM entities.
To SDM	`omniproto` → `sdmproto`	Converts OMNI protobuf records to SDM entities.
From SDM	`sdmproto` → `cotxml`	Converts SDM entities to Cursor-on-Target XML.
From SDM	`sdmproto` → `cotproto`	Converts SDM entities to Cursor-on-Target protobuf.
From SDM	`sdmproto` → `etfproto`	Converts SDM entities to Extended Track Format protobuf.
From SDM	`sdmproto` → `geojson`	Converts SDM entities to GeoJSON.
From SDM	`sdmproto` → `json`	Converts binary SDM protobuf to SDM Entity JSON.
From SDM	`sdmproto` → `omniproto`	Converts SDM entities to OMNI protobuf.
Passthrough	`sdmproto` → `sdmproto`	Passes SDM protobuf messages through unchanged.

To SDM

catapult → sdmproto

Converts CATAPULT document JSON to SDM entities.

To SDM

cotxml → sdmproto

Converts Cursor-on-Target XML events to SDM entities.

To SDM

cotproto → sdmproto

Converts Cursor-on-Target protobuf events to SDM entities.

To SDM

etfproto → sdmproto

Converts Extended Track Format protobuf records to SDM entities.

To SDM

geojson → sdmproto

Converts GeoJSON features to SDM entities.

To SDM

json → sdmproto

Converts SDM Entity JSON to binary SDM protobuf.

To SDM

klvjson → sdmproto

Converts MISB/KLV JSON metadata to SDM entities.

To SDM

omniproto → sdmproto

Converts OMNI protobuf records to SDM entities.

From SDM

sdmproto → cotxml

Converts SDM entities to Cursor-on-Target XML.

From SDM

sdmproto → cotproto

Converts SDM entities to Cursor-on-Target protobuf.

From SDM

sdmproto → etfproto

Converts SDM entities to Extended Track Format protobuf.

From SDM

sdmproto → geojson

Converts SDM entities to GeoJSON.

From SDM

sdmproto → json

Converts binary SDM protobuf to SDM Entity JSON.

From SDM

sdmproto → omniproto

Converts SDM entities to OMNI protobuf.

Passthrough

sdmproto → sdmproto

Passes SDM protobuf messages through unchanged.

Developer Resources

Developers can download the SDM protobuf and OpenAPI source bundle from the SDM Developer Guide page.
