QoS Priority and Network Status

SDL uses Quality of Service (QoS) priorities and current network status to keep mission-critical pipelines running when bandwidth is constrained. The platform evaluates each pipeline against catalog references, resolves an effective priority, and can temporarily suspend lower-priority runtime workloads until network conditions permit them to resume.

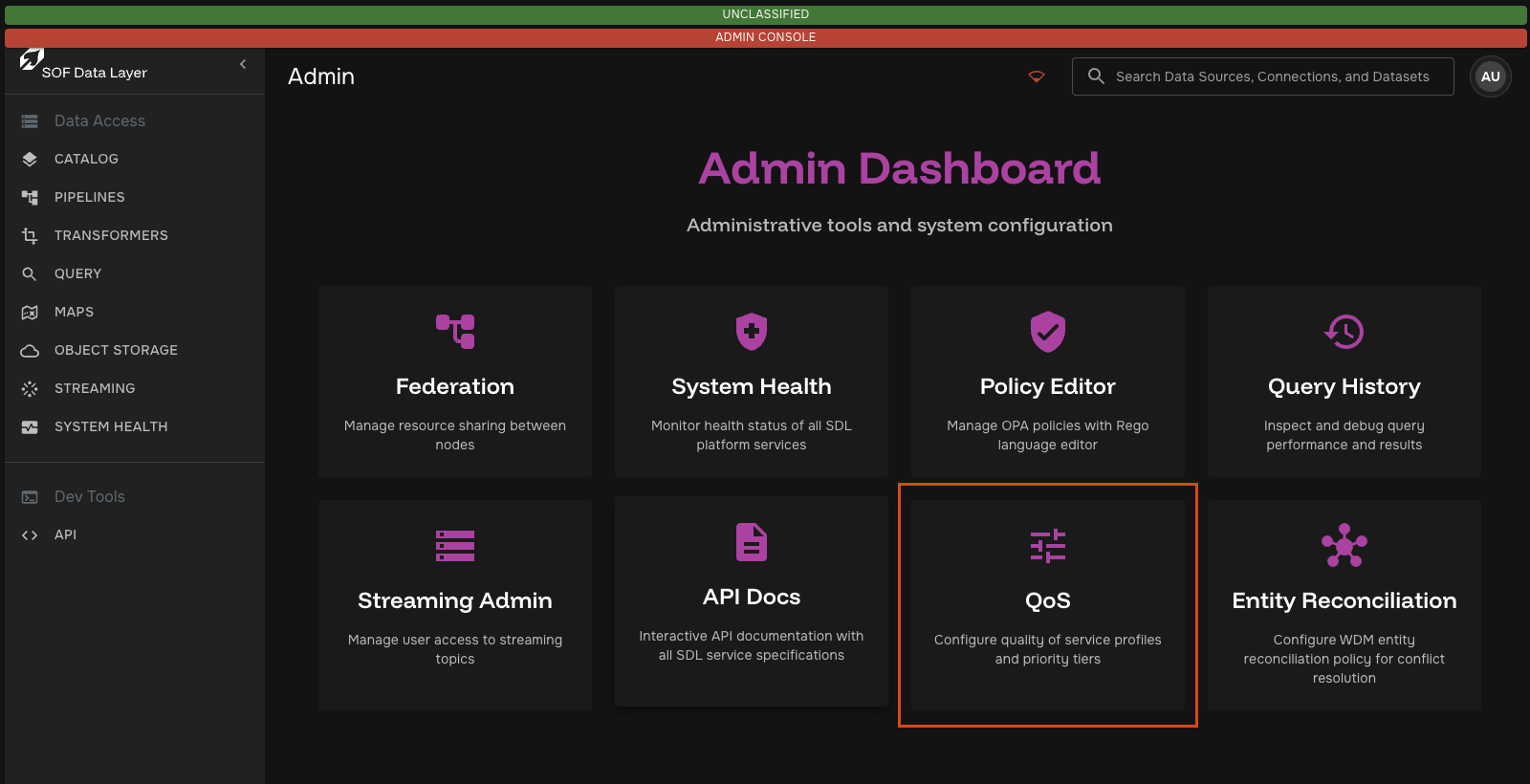

QoS Admin Dash

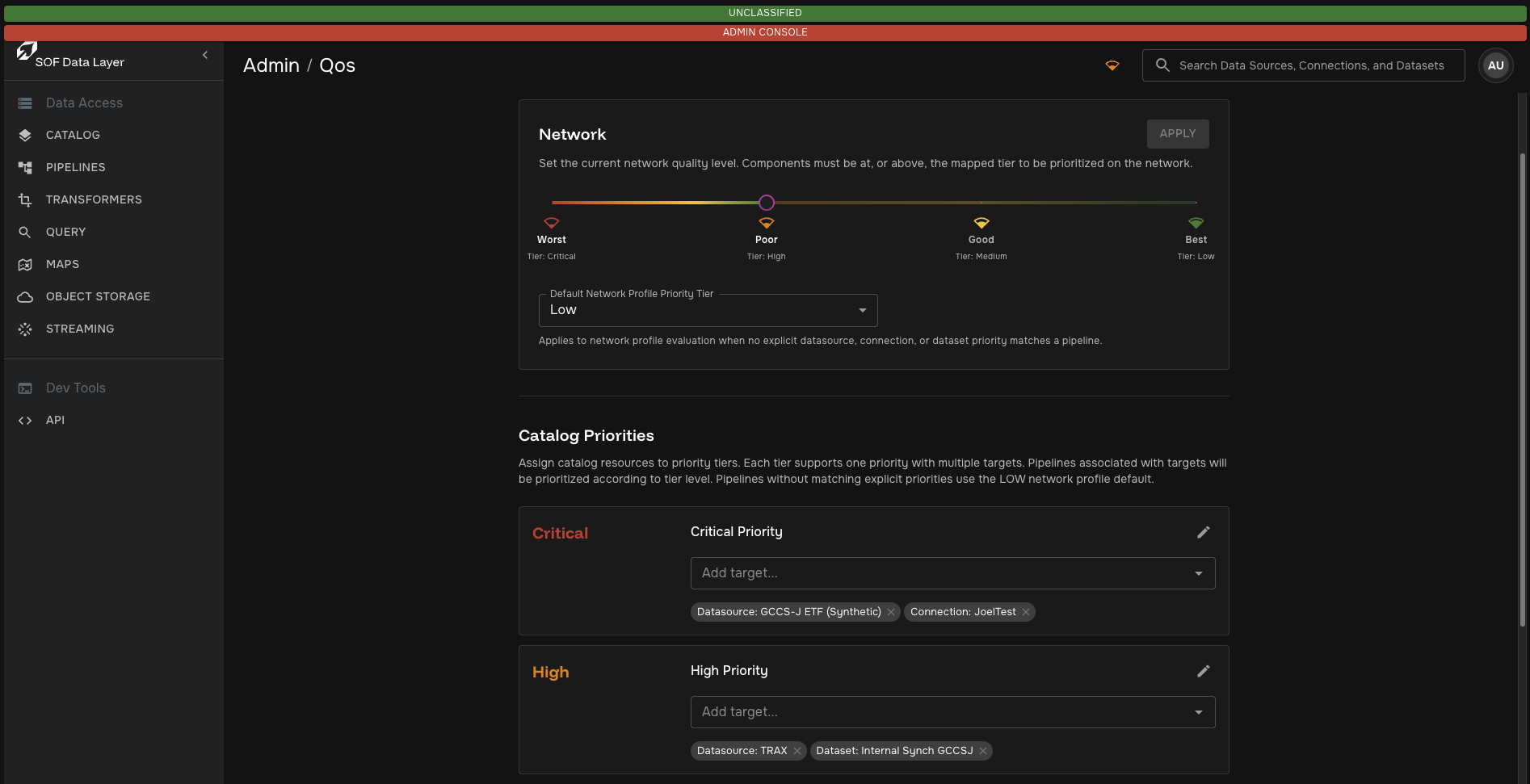

QoS Admin Page

Effective Priority

Each pipeline can reference catalog resources such as datasources, enablements, and datasets. SDL resolves those references into one effective priority for the pipeline.

Effective priority follows these rules:

  • Dataset priority is evaluated first. If any referenced dataset has an assigned priority, the highest dataset priority becomes the pipeline effective priority.

  • Connection priority is evaluated only when no referenced dataset has an assigned priority. If any referenced connection has an assigned priority, the highest connection priority becomes the pipeline effective priority.

  • Datasource priority is evaluated only when no referenced dataset or connection has an assigned priority. If any referenced datasource has an assigned priority, the highest datasource priority becomes the pipeline effective priority.

  • The Default Network Profile Priority Tier is used only when no referenced dataset, connection, or datasource has an assigned priority.

This means a more specific assignment wins before tier comparison. For example, a connection set to LOW remains LOW even when its datasource is set to HIGH. Within the selected specificity level, the highest tier wins.

Priority tiers are ordered from highest to lowest:

Tier Order Meaning

CRITICAL

0

Highest priority. Continues to run under the most constrained network profile.

HIGH

1

Important operational traffic.

MEDIUM

2

Standard operational traffic.

LOW

3

Lowest priority tier.

Network Status and Profile

Network status and the QoS network profile are related but separate concepts. Network status reports user observed conditions such as link throughput, service latency, and reachability. The NETWORK profile is the QoS threshold used to decide which pipeline priorities are allowed to run.

When the NETWORK profile is stricter than a pipeline’s effective priority, the platform marks that pipeline for QoS suspension. The higher-priority tiers have lower numeric order values, so a pipeline is suspended when its effective priority order is greater than the current NETWORK profile order.

For example, when the network profile is HIGH:

  • CRITICAL and HIGH pipelines continue running.

  • MEDIUM and LOW pipelines are suspended by QoS.

  • Pipelines without catalog priority assignments resolve to the configured Default Network Profile Priority Tier.

Admins can set the Default Network Profile Priority Tier from the QoS Admin page. Changing this value affects only pipelines without an explicit priority on any referenced dataset, connection, or datasource. Pipelines with explicit catalog priority assignments continue to use the effective priority rules above.

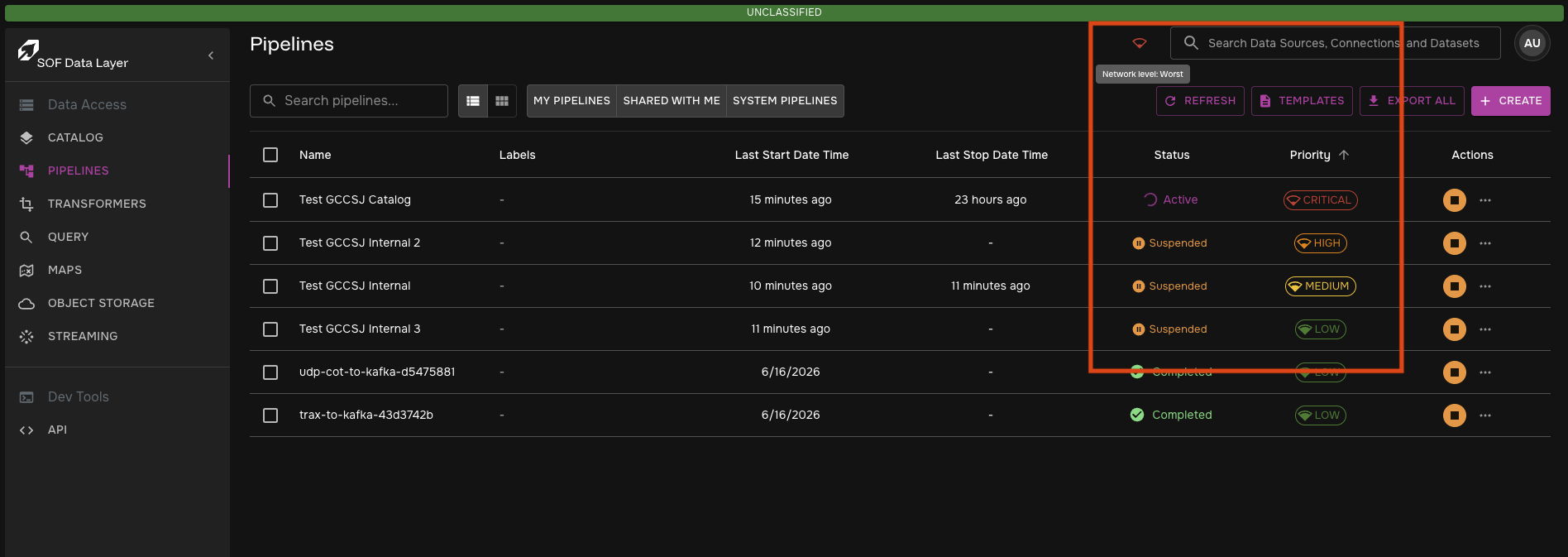

Notice in the following example: Network Status is "Worst", only the pipeline with a Critical effective priority is still active. The pipelines with High, Medium, and Low priorities are Suspended
QoS Pipeline View

Runtime Flow

QoS evaluation is shared across the platform:

  1. An admin user or automated external process updates the network profile or catalog priority assignments.

  2. The backend listens to that event and responds by calculating and applying effective priorities to pipelines.

  3. If the network profile later allows the pipeline to run, df-operator removes the QoS suspension annotations and normal reconciliation recreates runtime resources.

  4. If any change happens in the pipeline components while it is suspended (i.e., a dataset priority is raised to match network level), the backend will reconcile the pipeline and activate it automatically if necessary.

  5. A backend process will run reconciliation on the pipelines periodically in the event that some backend component was down or an error occurred. The pipelines will eventually activate or suspend accordingly.

Priorities can be set on resources directly

Datasets:

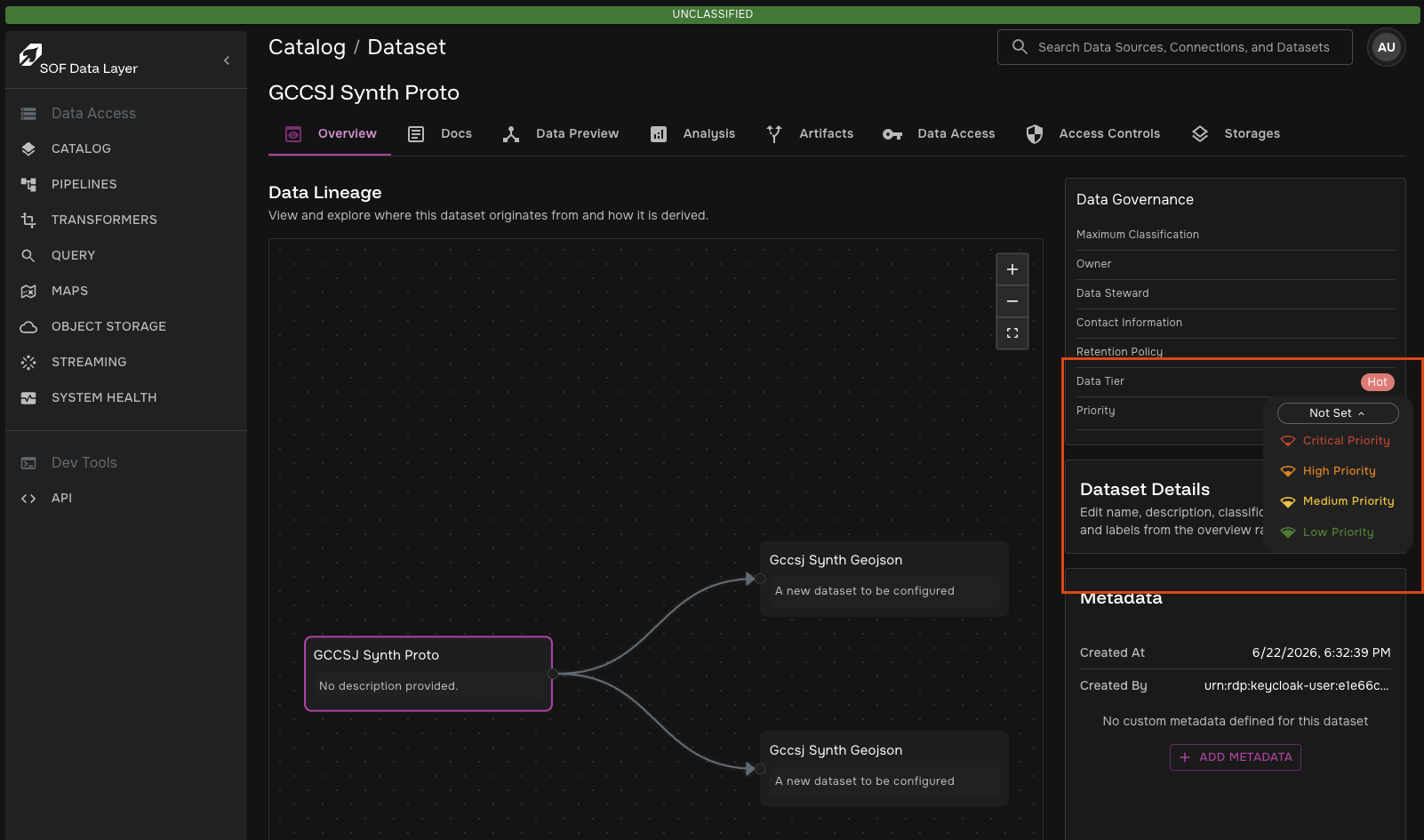

Priorites can be set directly by admin users on the Dataset Catalog Detail page

QoS Dataset View

Datasources:

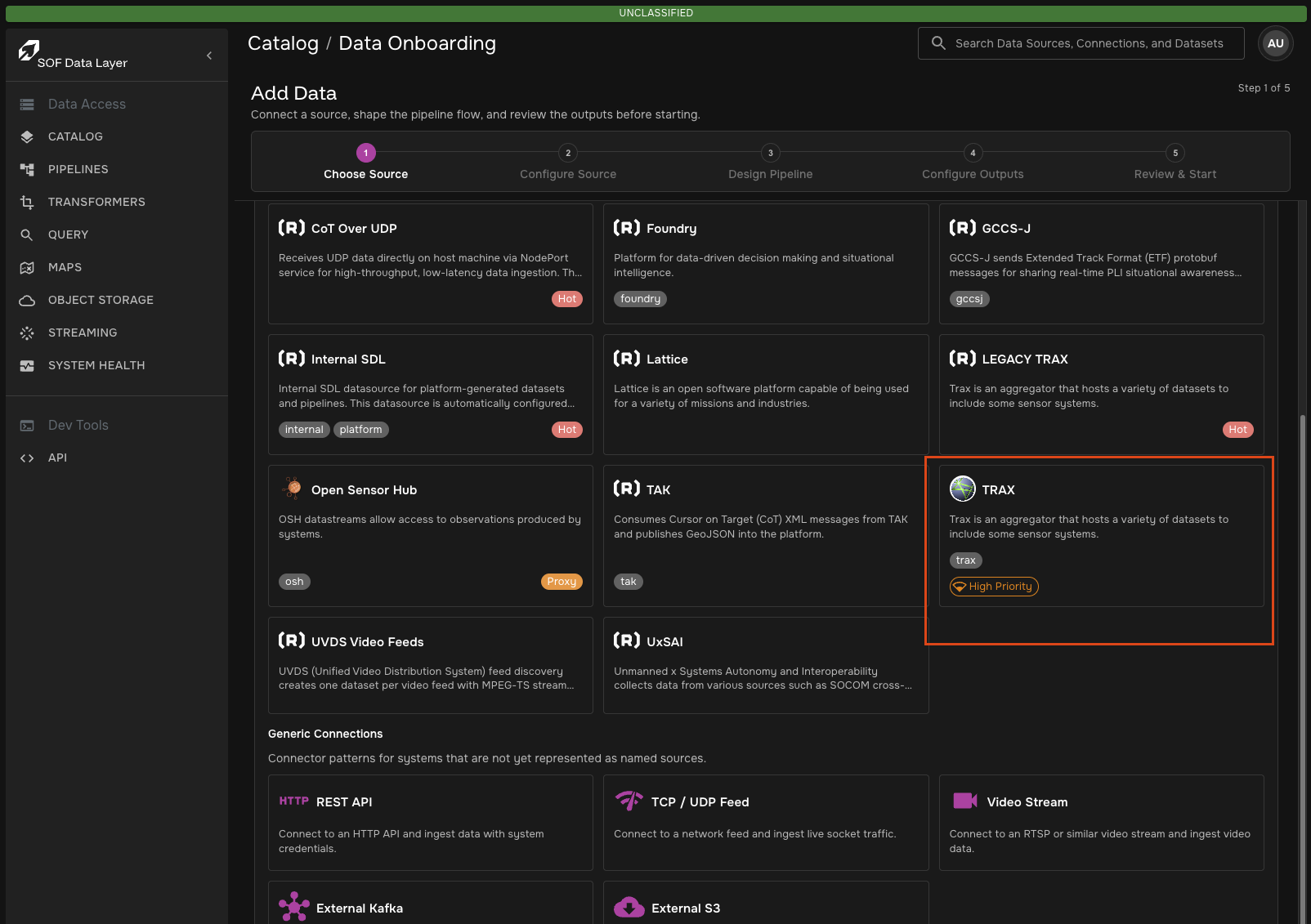

Priorites can be only be set on datasources from the QoS Admin Page but can be viewed when creating a new connection

QoS Datasource View

Connections:

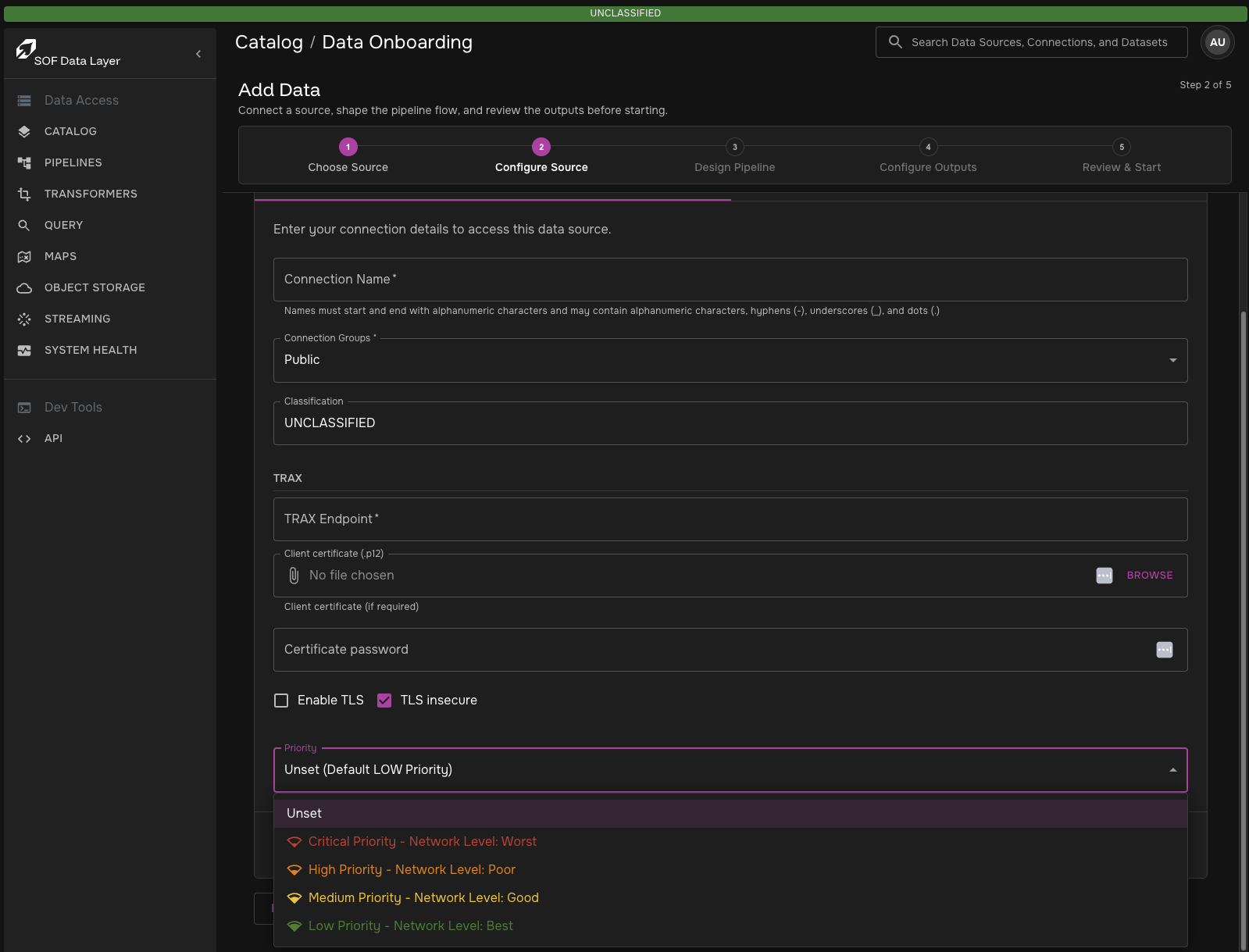

Priorites can be set directly on a new connection when being created, even by non-admin users. Modifications, however, must be made by admins in the QoS Admin Page.

QoS Connection Create View

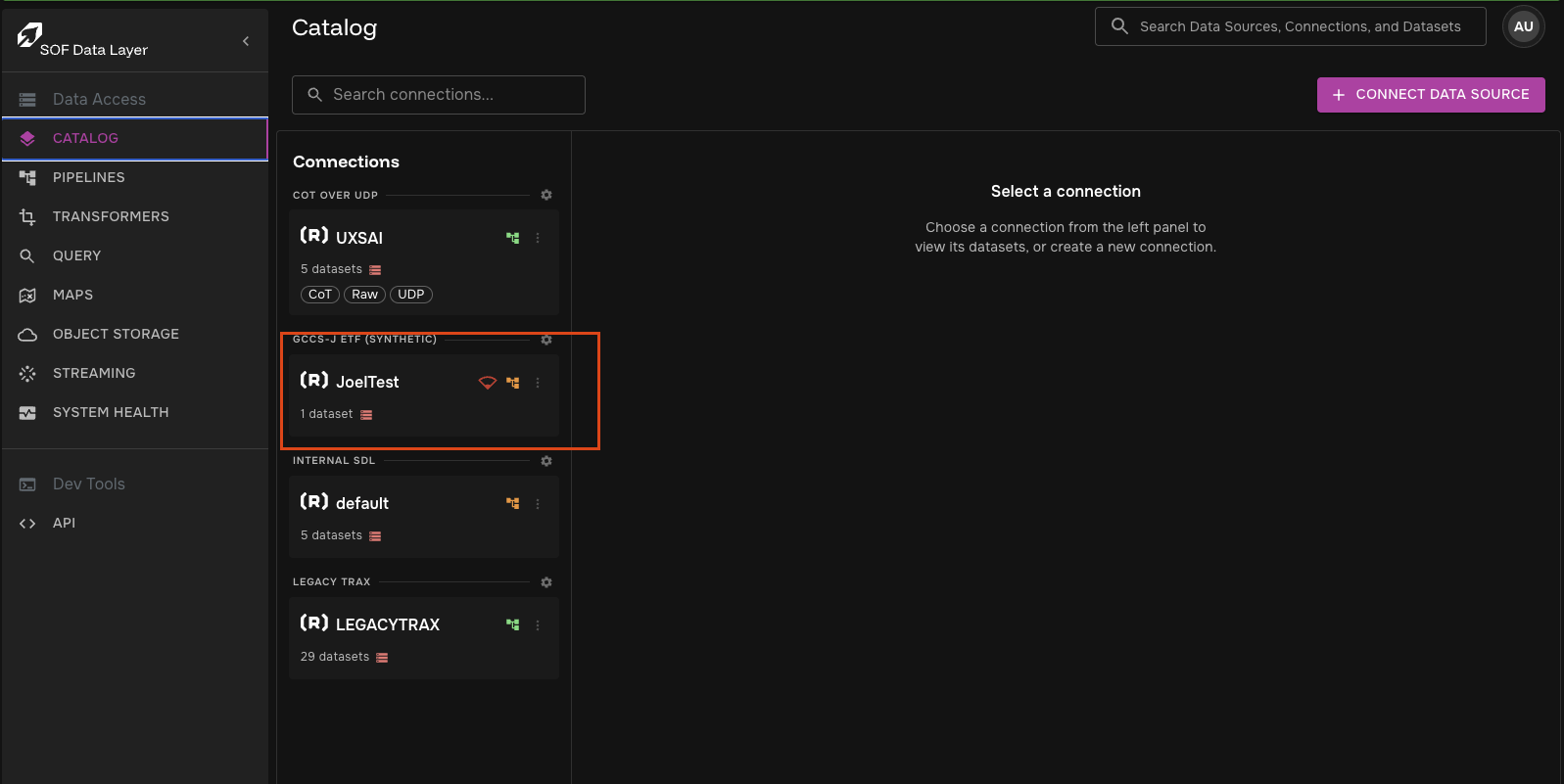

A user can see an existing connection priority from the main catalog list page by the icon.
QoS Connection View

Suspension Behavior

QoS suspension is temporary and platform-controlled. It is different from a user stopping a pipeline.

When a pipeline is QoS suspended:

  • The Pipeline custom resource remains in the cluster.

  • Runtime Jobs and Services are removed or prevented from starting.

  • The pipeline status is shown as Suspended.

  • The suspension marker is stored on the live Pipeline resource as sdl.qos.suspended=true.

  • The pipeline resumes automatically when QoS permits it to run again.

User-stopped pipelines do not restart just because network conditions improve. Pipelines in terminal states such as Finished or Invalid do not remain QoS suspended; stale QoS suspension annotations are cleared.

Failure Handling

QoS is designed to degrade safely:

  • If df-core is unavailable, df-backend still returns pipeline list and detail responses without failing the request.

  • If df-core is unavailable to df-operator, the operator leaves the current runtime state unchanged instead of mass suspending or resuming pipelines.

  • Existing Pipeline resources without catalog reference annotations resolve to default LOW.

Common Scenarios

Scenario Expected behavior

Network profile is LOW

Active runtime-eligible pipelines run unless a user has stopped them.

Network profile changes to HIGH

LOW and MEDIUM pipelines are QoS suspended. HIGH and CRITICAL pipelines keep running.

Network profile returns to LOW

QoS-suspended pipelines resume automatically. User-stopped pipelines stay stopped.

Priority assignment changes

Matching pipelines receive a new effective priority on the next QoS evaluation. Specificity is evaluated first, then the highest tier within that specificity level wins.

Pipeline has no catalog refs

Pipeline resolves to the configured Default Network Profile Priority Tier.
